| MOQ: | 1 Set |
| Price: | Negociable |
| Standard Packaging: | Sea Iron frame Packing Iron Frame |
| Delivery Period: | 60 days after deposit |
| Payment Method: | L/C, T/T, Western Union, |
| Supply Capacity: | 500 Tons per Month |

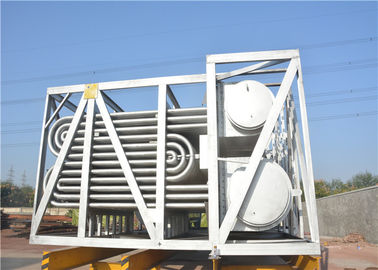

Natural Gas Heater Tube Bundle For Steel Mill Boiler Pressure Parts For Waste Heat Boiler
Product Description
Air pre-heater is a kind of equipment used to improve the heat exchange performance and reduce energy consumption of the boiler, which means that the flue gas in the tail flue of the boiler will preheat the air before entering the boiler to a certain temperature through the internal radiator. Air preheater is generally divided into three types: plate type, rotary type and tube type. Taking the rotary type as an example, the working principle of air preheater is introduced. A large number of unburned combustibles will deposit on the heat transfer elements, which may cause the air preheater to ignite. The causes of ignition and the countermeasures are described in detail. The shutdown analysis and air leakage control are also introduced in detail.
Different types
For the use in Steam Generators (boilers)in Thermal power stations of Utility power stations, there are two types of design of the Airpreheaters. One is a tubular type built into the boiler outlet Flue_gas ducting and another one is of the regenerative type known as Ljungstrom (named after the name of inventor) Regenerative Air Pre Heater(RAPH),a rotating type. This may be horizontal (now very common in power generation utilities) or vertical.
Parameter
| Name | Thermal efficiency improving coal fired industrial steam boiler combustion APH air preheater |
| Material | Carbon steel or equivalent |
| Structure | vertical |
| Tubes | enameled seam or seamless tubes |
| Tube OD | as required |
| Enamel thickness | 0.34+/-0.06mm |
| Size | Customzied design |
Product advantages
Benefits
1. Improved combustion rate and then increases steam generations rate of boiler.
2. Due to higher temperature of air, furnance temperature increases, so low grade coal can be burnt efficiently.
3. Air heated by heat of exhaust gases.It reduces fuel consumptions.Therfore thermal efficiency of boiler increased.
4. Saving in fuel consumption and Increased steam generation capacity.
Parameters
| Layout item | Horizontal layout | Vertical layout |
| Tube arrangement |
staggered arrangement / |
staggered arrangement / |
| Sealing of pipe and plate |
Packing heat- resistant material/ |
welding |
| Anti-wearing |
a,when gas scours external tube, welcoming smoke tubes have protective tile |
|
Company Information
The products of our company have been widely used in major power plants of various provinces and cities in China, bringing stable and significant economic and social benefits to cooperated power plants. At the same time, we attach great importance to product development and strive to improve product quality. Through the cooperation with a number of domestic and foreign companies, we constantly explore the international market.
