| MOQ: | 5 tons |
| Price: | Negotiable |
| Standard Packaging: | Seaworthy Packing |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, T/T, Western Union, D/P, MoneyGram |
| Supply Capacity: | 1000 Tons/Month |

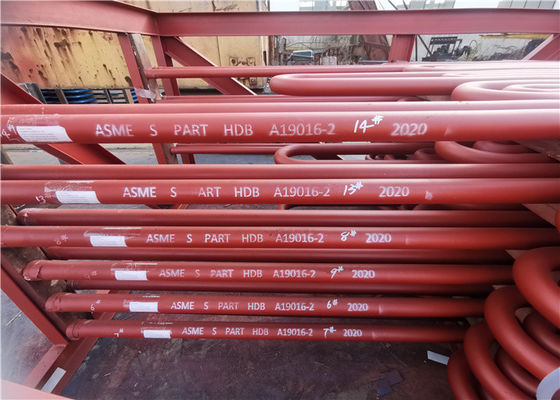

Seamless high pressure Performance Heat Exchanger Superheater and Reheater For For CFB boiler
Steam Superheater in Boiler Manufacturer in China:
Reasons to buy steam superheater from HDB:
Our boiler superheaters come with adequate safety features to prolong the life of a superheater as well as your equipment where the steam is used.
The safety valve is installed in a super-heater to prevent operating pressure to exceed the design pressure of a superheater in the boiler.
We manufacture steam superheaters that suit different type of fuels such as:
1.Solid Fuels (Wood, Rice Husk, Bagasse, Coal)
2.Liquid and Gas fuels (Light and Heavy Oils, Natural Gas)
3.Electrical operated steam boiler superheaters.
Product Description
For power plant boiler, it is a crutial way to increase thermal economy of thermal power station by improving parameter of superheated steam. The increase of superheated steam parameters are limited by metal materials. The design of superheaters must make sure that the temperature of outer wall of heating surface pipes is lower than allowable temperature of oxidation resistance of steel, and meanwhile make sure its mechanical strength. with the development of metal material used in boilers, pwoer station boilers in our country already generally apply high pressure, high temperature(9.8MPa, 540 degrees) and superhigh pressure parameters(13.7 MPa, 540 and 555 degrees), and have developed subcritical pressure parameters(16.7MPa, 540 and 555 degrees). Now lots of boilers apply supercritical pressure parameters(24.5MPa, 540-570 degrees), and even very few units apply higher pressure and temperture parameters.
ASME certificate boiler parts boiler superheater China factory direct sell
1) Both Radiant-Convective and 100% Convective Available
2) Assemblies Completely Self-Supporting (No Intermediate Support Brick Required
3) All Elements of Equivalent Length Ensuring Balanced Flow
4) Conservative Velocities Inside Tubes Assure Positive Cooling at All Loads
5) Fully Drainable
Differences
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support | 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. | supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type |
1. Proper drainage 2. Good structural rigidity. |
1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
Features
As outstanding features, Heat Efficiency Improving boiler parts reheater for Steam Boiler have beautiful appearance, accurate sizes, advanced bending and welding technique, first-lass testing equipment and guaranteed quality.
Thechnical parameters
| Material | carbon steel, alloy steel , or durable heat steel |
| Tube OD | 10-114mm |
| Tube W.T. | 0.8mm- 15mm |
| Structure | vertical or horizontal |
Workshop
Application
use for heating saturated steam, steam temperature could be up to 900 degree C.
Superheater Capacity Upgrades to Increase Power Generation
Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.
Certifications
HD Boiler offers a best in class facility,including
|
|
