| MOQ: | 1 Set |
| Price: | Negotiable |
| Standard Packaging: | Seaworthy Packing |
| Delivery Period: | 30 Days |
| Payment Method: | Western Union, L/C, T/T |
| Supply Capacity: | 500 Sets Per Year |

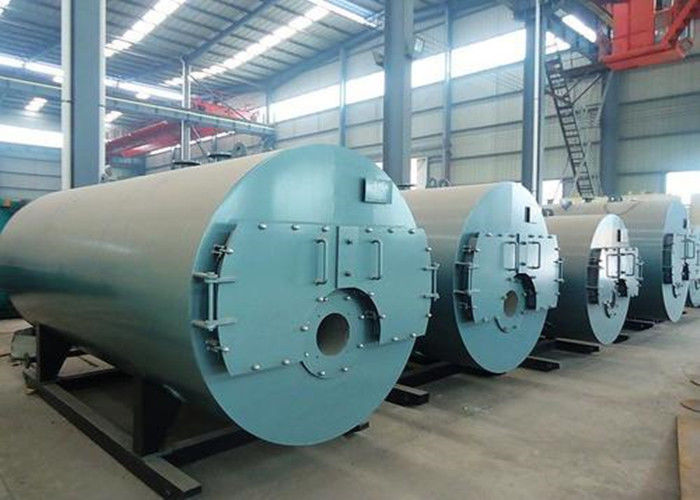

Vertical or Horizontal Organic Heat Carrier Boiler gas oil fired Thermal Heater
Description of Thermal Oil Boiler
Organic heat carrier boiler is a new type heating equipment that can save energy and reduce emission. It uses coal as fuel and heat transfer oil as heat carrier (such as l-qb, l-qc, l-qd). It uses circulating oil pump to make heat carrier cycling forcibly, after that the heat carrier return to the boiler be reheated tot use. The highest temperature that coal-fired organic heat carrier boiler can supply is 340℃, and the working pressure is under 0.8mpa, so it is safe and reliable.
Technical Parameter of Thermal Oil Boiler
|
Model YYL(W) |
350 Y(Q) |
600 Y(Q) |
900 Y(Q) |
1200 Y(Q) |
1500 Y(Q) |
1800 Y(Q) |
2300 Y(Q) |
2900 Y(Q) |
3500 Y(Q) |
||
| Rated power(kw) | 350 | 600 | 900 | 1200 | 1500 | 1800 | 2300 | 2900 | 3500 | ||
| Heat supply×104(kCal/h) | 30 | 50 | 75 | 100 | 160 | 150 | 200 | 250 | 300 | ||
| Thermal efficiency(%) | ≥88 | ≥88 | ≥88 | ≥88 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ||
| Design pressure(MPa) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | ||
| Maximum working temperature(℃) | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | ||
| Medium circulation rate(m3/h) | 40 | 58 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | ||
| The furnace medium capacity(m3) | 0.4 | 0.6 | 0.6 | 0.8 | 1.2 | 2.1 | 2.6 | 3.5 | 7.8 | ||
| Competent diameter(DN) | 100 | 100 | 125 | 125 | 125 | 150 | 150 | 200 | 200 | ||
| Capacity(kw) | 14.5 | 18 | 31 | 37.5 | 49.5 | 57.5 | 61.5 | 75 | 75 | ||
| Applicable fuel | Oil,Gas | ||||||||||
| Fuel consumption Kg/h(oil) | 34 | 56 | 84 | 111 | 141 | 163 | 217 | 273 | 326 | ||
|
Dimensions (￠·H)m |
Vertical oil furnace | 1.3×2.5 | 2×3.5 | 2.1×3.5 | 2.2×3.5 | 2.2×4 | 2.2×4.4 | 2.7×5.1 | 2.8×6.5 | 3.2×6.7 | |
| Horizontal oil furnace | 1.2×2.4 | 1.7×3 | 1.82×3.5 | 1.92×4 | 1.95×4.3 | 2.4×4.3 | 2.52×5.3 | 2.8×6.3 | 2.92×6 | ||
|
Circulation pump |
Model WRY | 80-50-180 | 100-65-190 | 100-65-230 | 100-65-240 | 100-65-257 | 125-80-250 | 125-80-250 | 125-100-250 | 125-100-250 | |
| Flow(m3/h) | 40 | 60 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | ||
| Lift(m) | 40 | 38 | 55 | 70 | 80 | 60 | 60 | 60 | 60 | ||
| Power(kw) | 7.5 | 11 | 22 | 30 | 37 | 45 | 45 | 55 | 55 | ||
Verification
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
|
|
