Fuel Saving Industrial Thermic Fluid Boiler / Waste Wood Hot Oil Boiler System
Description
A thermal oil boiler fires through a helical coil and generates energy from the hot products of combustion by heating the coil through radiation and convection. The coil heats thermal oil or fluid that is pumped through the thermal oil boiler. The thermal oil heats coils in various types of heat exchangers. Unlike a water or steam boiler, this heating process does not heavily pressurize the system.
Technical Parameter
|
Model YYL(W) |
4700 Y(Q) |
5900 Y(Q) |
7000 Y(Q) |
8200 Y(Q) |
9400 Y(Q) |
10500 Y(Q) |
12000 Y(Q) |
14000 Y(Q) |
16300 Y(Q) |
||
| Rated power(kw) | 4700 | 5900 | 7000 | 8200 | 9400 | 10500 | 12000 | 14000 | 16300 | ||
| Heat supply×104(kCal/h) | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 1400 | ||
| Thermal efficiency(%) | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ||
| Design pressure(MPa) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | ||
| Maximum working temperature(℃) | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | ||
| Medium circulation rate(m3/h) | 260 | 300 | 340 | 400 | 520 | 600 | 600 | 680 | 800 | ||
| The furnace medium capacity(m3) | 8.4 | 8.8 | 10.5 | 11.2 | 11.5 | 13 | 15 | 18 | 23 | ||
| Competent diameter(DN) | 200 | 250 | 250 | 250 | 300 | 300 | 300 | 350 | 350 | ||
| Capacity(kw) | 98.5 | 121.5 | 148.5 | 155 | 195 | 235 | 235 | 295 | 341 | ||
| Applicable fuel | Oil,Gas | ||||||||||
| Fuel consumption Kg/h(oil) | 435 | 545 | 660 | 760 | 875 | 980 | 1140 | 1360 | 1600 | ||
|
Dimensions (￠·H)m |

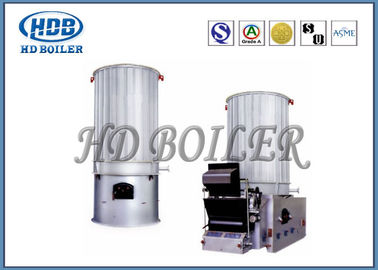

Vertical oil furnace | 3.2×7 | 3.3×7.5 | 3.5×8.2 | 3.62×9.2 | 3.7×9.6 | 3.65×11 | 3.65×11 |
3.98× 11.8 |
4.06× 12.8 |
|

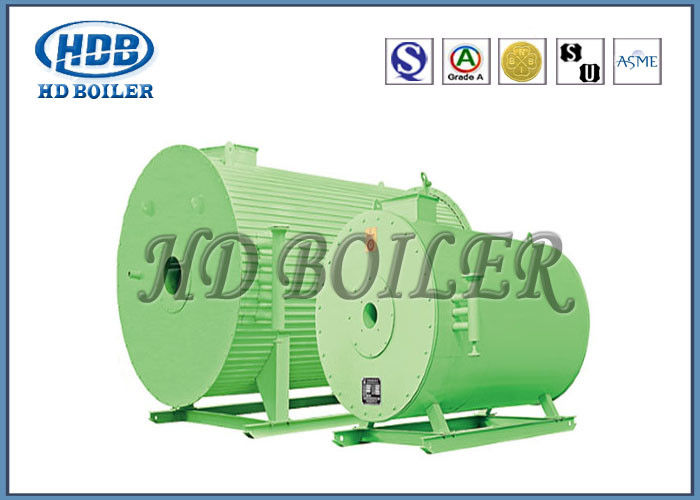

| Horizontal oil furnace | 3.23×6.7 |
3.26×7.45 |
3.26×7.9 | 3.62×9 | 3.6×9.48 |
3.65× 10.4 |
3.65× 10.4 |
3.98× 11.5 |
4.06× 12.5 |
||
|
Circulation pump |
Model WRY | 125-100-257 |
125- 100-260 |
150-125-270 | 125-100-250 | 125-100-257 | 125-100-260 | 150-100-260 | 150-125-270A | 150-125-280 | |
| Flow(m3/h) | 260 | 300 | 340 | 200×2 | 260×2 | 300×2 | 300×2 | 340×2 | 400×2 | ||
| Lift(m) | 70 | 70 | 76 | 60 | 70 | 70 | 70 | 76 | 78 | ||
| Power(kw) | 75 | 90 | 110 | 55×2 | 75×2 | 90×2 | 90×2 | 110×2 | 132×2 | ||
Features
1. Energy-efficient
2. Safe and reliable
3. Easy to install
4. Fuel applicable
5. Application industry
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
|
|
