| MOQ: | 1Set |
| Price: | Negotiable |
| Standard Packaging: | Seaworthy Packing |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, T/T, Western Union, D/P, MoneyGram |
| Supply Capacity: | 500 Sets / Per Year |

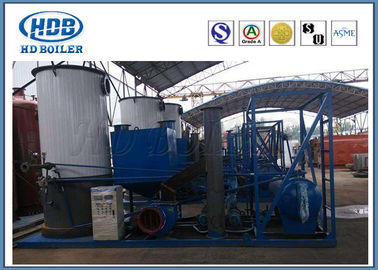

Environmental friendly YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler for industrial
Production
Organic heat carrier boiler is a new type heating equipment that can save energy and reduce emission. It uses coal as fuel and heat transfer oil as heat carrier (such as l-qb, l-qc, l-qd). It uses circulating oil pump to make heat carrier cycling forcibly, after that the heat carrier return to the boiler be reheated tot use. The highest temperature that coal-fired organic heat carrier boiler can supply is 340℃, and the working pressure is under 0.8mpa, so it is safe and reliable.
Features
1, Energy-efficient
2, Safe and reliable
3, Environmental protection
Parameter
Data |
Model | Parameter | YGL- 180M |
YGL- 300M |
YGL- 350M |
YGL- 460M |
YGL- 700M |
YGL- 1000M |
YGL- 1200M |
YGL- 1400M |
YGL- 1900M |
|
Rated power Kw |
180 | 300 | 350 | 460 | 700 | 1000 | 1200 | 1400 | 1900 | |||
Heating load×104kcal/h |
15 | 25 | 30 | 40 | 60 | 80 | 100 | 120 | 160 | |||
Thermal efficiency% |
71 | 71 | 71(66) | 71(66) | 71(66) | 71(74) | 71(74) | 71(74) | 71(74) | |||
Design pressure Mpa |
0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 1.1 | 1.1 | 1.1 | 1.1 | |||
Maximum working temperature |
320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |||
Medium circulation speed m 3 /h |
12.5 | 40 | 40 | 60 | 80 | 100 | 100 | 100 | 160 | |||
Medium volume in boiler m 3 /h |
0.15 | 0.3 | 0.4 | 0.5 | 0.7 | 1 | 1.1 | 1.2 | 1.6 | |||
Calber of master tube DN |
40 | 80 | 80 | 100 | 100 | 125 | 125 | 125 | 150 | |||
Installed capacity kw |
8.5 | 15 | 18(15) | 24(20) | 28(25) | 45(40) | 53(48) | 60(55) | 80(73) | |||
Appropriate coal |
Soft coal, blind coal | |||||||||||
Coal consumption kg/h |
48 | 75 | 85 | 110 | 170 | 225 | 280 | 340 | 455 | |||
| Fan | Model |
- | T4-72 3A | T4-72 3A | T4-72 3A | T4-72 3A | T4-72 3.5A | T4-72 3.5A | T4-72 3.5A | T4-72 4A | ||
Flow m 3 /h |
- | 1588-3049 | 1588-3049 | 1588-3049 | 1588-3049 | 2522-4841 | 2522-4841 | 2522-4841 | 2522-4841 | |||
Wind pressure Pa |
- | 1142-716 | 1142-716 | 1142-716 | 1142-716 | 1556-976 | 1556-976 | 1556-976 | 1275-2036 | |||
Power Kw |
- | 1.5 | 1.5 | 1.5 | 1.5 | 3 | 3 | 3 | 5.5 | |||
| Induced-draft fan | Model |
YX5-47 4C | YX5-47 4C | YX5-47 4C | YX5-47 5C | YX5-47 5C | YX9-35 6.3C | YX9-35 6.3C | YX9-35 6.3C | YX9-35 8C | ||
Flow m 3 /h |
2750-5060 | 3130-5750 | 3130-5750 | 4840-8900 | 4840-8900 | 9474-10626 | 9474-10626 | 9474-10626 | 15627-17528 | |||
Wind pressure pa |
1451-990 | 1873-1284 | 1873-1284 | 1843-1265 | 1843-1265 | 2452-2393 | 2452-2393 | 2452-2393 | 2383-2334 | |||
Power Kw |
3 | 4 | 4 | 5.5 | 5.5 | 11 | 11 | 11 | 18.5 | |||
| Circulating pump | Model WRY |
50-50-170 | 80-50-180 | 80-50-180 | 100-65-190 | 100-65-200 | 100-65-230 | 100-65-240 | 100-65-257 | 125-80-250 | ||
Flow m 3 /h |
12.5 | 40 | 40 | 60 | 60 | 100 | 100 | 100 | 160 | |||
Height m |
32 | 40 | 40 | 38 | 38 | 55 | 70 | 80 | 60 | |||
Power Kw |
4 | 7.5 | 7.5 | 11 | 11 | 22 | 30 | 37 | 45 | |||
Production Workshop
Certifications
Company Introduction
Established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port
|
|
